PRODUCTS
FHD TYPE OF TELESCOPIC CYLINDER
| IMAGE | CODE | WEIGHT (KG) | MOUNTING TYPE | E (MM) | FIRST STAGE DIAMETER (MM) | STROKE (MM) | MATERIAL TYPE | WORKING PRESSURE (BAR) | MAX. WORKING PRESSURE (BAR) | ØA (MM) | ØB (MM) | ØC (MM) | H (MM) | H1 (MM) | S (MM) | S1 (MM) | OIL INLET (INCH)) | VOLUME (LT) | NUMBER OF STAGES |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

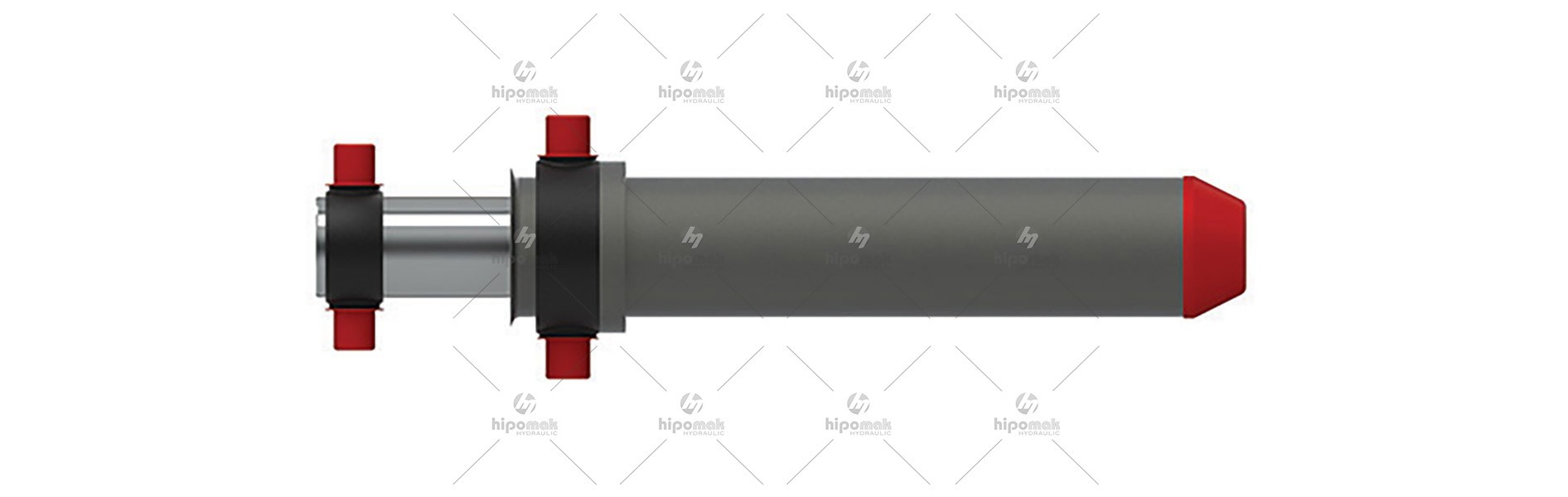

FHD Type of Telescopic Cylinder FHD Tipi Teleskopik Silindir |
||||||||||||||||||
 |
FHD TYPE 135-4-4100 COLD-DRAWN HYDRAULIC TELESCOPIC CYLINDER+BRAKET 7CFHD13544100 |
205 | FHD | 190 | 135 | 4100 | SOĞUK ÇEKİM | 170/2465 | 190/2755 | 156 | 219 | 373 | 1345 | R 3/4" | 45 | 4 | |||
|
FHD TYPE 154,5-4-4440 COLD-DRAWN HYDRAULIC TELESCOPIC CYLINDER+BRAKET 7CFHD15544440 |
239 | FHD | 190 | 154,5 | 4440 | SOĞUK ÇEKİM | 170/2465 | 190/2755 | 175 | 242 | 373 | 1435 | R 3/4" | 67 | 4 | |||
|
FHD TYPE 175-5-5550 COLD-DRAWN HYDRAULIC TELESCOPIC CYLINDER+BRAKET 7CFHD17555550 |
297 | FHD | 190 | 175 | 5550 | SOĞUK ÇEKİM | 170/2465 | 190/2755 | 197 | 242 | 373 | 1438 | R 1" | 95 | 5 | |||
|
FHD TYPE 197-5-5550 COLD-DRAWN HYDRAULIC TELESCOPIC CYLINDER+BRAKET 7CFHD19755550 |
389 | FHD | 190 | 197 | 5550 | SOĞUK ÇEKİM | 170/2465 | 190/2755 | 220 | 273 | 373 | 1441 | R 1" | 125 | 5 |
